The ladder Jack scaffolding is the simplest form of modern scaffolding, made of jacks, brackets, platforms, and a ladder. The simple structure and design of this scaffolding reduce the installation and dismantling time. There are two main types of ladder jack scaffolding: Side Rail Ladder Jacks and two—or three-rung bracket ladder jacks. Both are known for their adaptability, portability, and cost-effectiveness. Ladder jacks are inexpensive and flexible. They can be moved around the construction site and used for light-duty tasks.
Ladder Jack is an effective multi-purpose scaffolding. It is used for roofing purposes, camera installation, maintenance work, window cleaning, and painting tasks. It can fit into narrow spaces, allowing workers to reach otherwise inaccessible corners. It also takes up less space in the storage. However, it does have some limitations regarding the weight it can support and the height it can reach.
The UAE has set stringent requirements for all types of scaffolding, including ladder jack scaffolding. Contractors must comply with the special requirements set by the Occupational Safety and Health Administration (OSHA). Today, we will discuss the advantages, disadvantages, and safety guidelines for ladder jack scaffolding. You should be familiar with them if you work or plan to start working in the UAE’s construction industry. So without further ado, let’s get right into it.

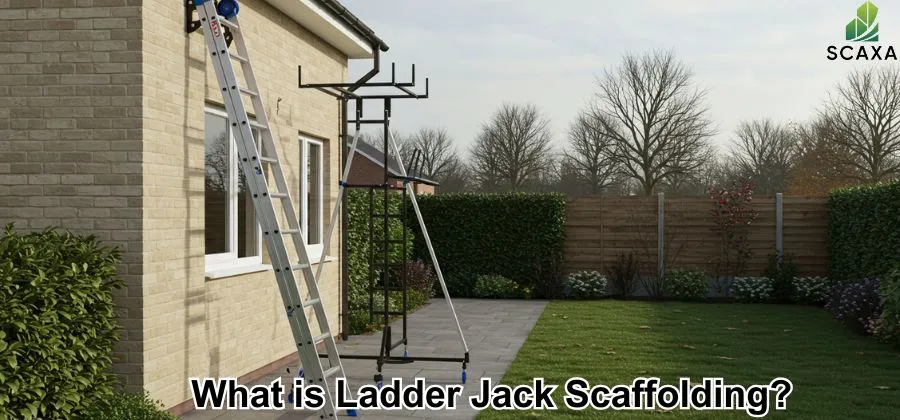

What Is Ladder Jack Scaffolding?
A ladder jack scaffold is a simple device with platforms placed on brackets attached to a ladder. It is used on construction sites because it is quick to install and dismantle, and very adaptable for use in narrow spaces.
There are two major variations or types of ladder jack: Side Rail Ladder Jacks and two—or Three-Rung Bracket Ladder jack. The Side Rail Ladder is installed into the railing and rungs of a pair of extensions or single ladders. The planking is slid into position along the side of the bracket to make a platform. The Two or Three-Rung Bracket Ladder Jack hooks into two or three ladder rungs. Planks are often placed on top of brackets to create platforms.
Ladder Jack scaffolding is used for light tasks at a construction site. Workers use it for painting, maintenance, and window installation tasks. The high portability and light structure of this scaffolding make it an effective choice for these tasks.
What are the Benefits of Ladder Jack Scaffolding?
Ladder Jack Scaffolding offers several benefits, including high portability, conveyance, and cost-effectiveness. Suppliers also prefer it because it can be installed and uninstalled easily. It is easy to store and ideal for light-duty work.
Portability
Ladder Jack is lightweight and compact, making it easy to transport and move around the construction site. It does not have bulky frames or support that would require it to be transported on wheels or cranes. The high portability of ladder jack scaffolding makes it an ideal choice for contractors who require a mobile setup for painting or window installation. When the task is completed, the ladder jack can be moved to the next location.
Cost-Effectiveness
Ladder Jack scaffolding is quite inexpensive, as it consists of fewer materials: ladders, jacks, and platforms. Plus, assembling it is easy. Fewer building materials and the easy installation process reduce the rental and purchase cost for this scaffolding. This is why contractors love ladder jacks: they are cheap and they deliver what they promise!
Space Efficiency
This scaffolding takes up very little ground space at the construction site, making it perfect for tight or congested spaces. It can also be erected in places where big and heavy scaffolding won’t fit, which is particularly helpful when working in crowded urban settings.
Ease of Assembly/Disassembly
It is very easy to assemble and dismantle ladder jack scaffolding. In fact, the installation process is so simple that in some areas of the UAE, no or minimal prior training is required to work on ladder jack scaffolding. Fast assembly and disassembly also improve productivity, as workers can get it up and working within minutes.
Adaptability
Ladder jack scaffolding is adaptable and convenient. It can be used on uneven ground or sloped surfaces, and its height can be adjusted by changing the ladder rung level. In addition, it has many applications, such as roofing, painting, exterior wall work, and window installation. As compared to traditional heavy scaffolding, it can be erected in a limited space, which makes it quite flexible.
Ladder jack scaffolding requires less storage space than other complex scaffolding structures because it is made of a handful of materials. This is a major plus point for contractors who work with limited storage spaces.
Because it consists of just ladders, jacks, and a platform, ladder jack scaffolding requires less storage space than full scaffolding systems. This is a major advantage for small contractors or teams with limited storage facilities.
What are the disadvantages of Ladder Jack Scaffolding?
Despite its many advantages, Ladder Jack scaffolding does have some disadvantages that should be considered before investing in it. The height restrictions and limited load capacity are the biggest disadvantages of ladder jack scaffolding.
Height Restrictions
Ladder Jack scaffolding cannot go above 20 feet (6 meters) without compromising the safety protocol. This is because it relies on extension ladders for support, and these extensions become dangerous and unstable above 20 feet. If workers need to work at greater heights, it is better to invest in another sturdy scaffolding system.
Limited Load Capacity
Ladder Jack scaffolding is designed to handle limited weight. It can support one worker and some tools. Overloading this scaffolding will lead to instability and pose a significant safety threat to the workers. It cannot support multiple workers and heavy equipment, so it cannot support complex construction techniques.
Platform Width
The ladder jacks’ platforms are quite narrow, usually 12 to 18 inches (30 to 45 cm) wide. The limited spaces can only support one worker with minimal equipment. This restricts movement and increases the risk of tripping and falling. Plus, as there is no space to store the tools on the platform, workers have to make multiple trips up and down the scaffolding.
Fall Protection
This scaffolding lacks guardrails or any fall protection system. This makes Ladder Jack scaffolding quite dangerous for the workers because they are always at risk of falling due to the narrow platforms. Workers often have to use harnesses or lifelines to protect themselves while working on the ladder jack scaffolding. All other scaffolding contains a standard guardrail or fall arrest system to protect the workers. You should invest in them to keep your workers safe.
What are the uses of Ladder Jack Scaffolding?
Ladder Jack scaffolding has five major uses: painting work, siding and trim installation, roofing and gutter Maintenance, Window Installation, and general repairs. Contractors almost exclusively use ladder jack scaffolding for these light-duty works.
Painting and Finishing Work
Ladder jack scaffolding is ideal for exterior or interior painting and finishing work. Such jobs require a stable platform at normal heights and don’t require heavy equipment, making them ideal for ladder jack scaffolding. Moreover, it is quick to erect and dismantle, making it easy for painters to move it to different parts of the building while painting.
Siding and Trim Installation
As the ladder jack scaffolding can be adjusted with the help of ladder rungs, it is a great choice for exterior siding, decorative trim, or fascia. It can be adjusted to achieve exact positioning, either close to walls or rooflines, to complete installations or decoration work. It can be hard for heavy scaffolding structures to adjust in narrow spaces to achieve precise positioning for installation work; this is why ladder jack scaffolding is specifically employed for it.
Roofing and Gutter Maintenance
It is perfect for roofing tasks like installing flashing or maintaining gutters. The ladder jack scaffolding provides stable support in narrow spaces and allows workers to complete roofing tasks easily. Usually, a two or Three-Rung Bracket Ladder jack is used for these tasks. The versatility and flexibility of this scaffolding make it a great investment.
Window Installation and Cleaning
Ladder Jack scaffolding is used for window installation or replacement on low—to mid-height buildings. The stable platforms allow the workers to complete the installation efficiently. It is also very effective for window cleaning professionals who need to reach the second story safely. However, it is not possible to use this scaffolding to reach the fourth or fifth floor, as it becomes unstable.
General Repairs and Maintenance
Contractors use Ladder Jack scaffolding for general repairs and maintenance tasks, such as minor wall damage, paint touch-ups, and interior decoration repairs. Due to its portability, it is quite handy for temporary maintenance work. When the work is over, workers can easily dismantle it and store it for future use.
What are the Safety Guidelines for Ladder Jack Scaffolding?
The general scaffolding requirement applies to all scaffolding across the UAE, and compliance with it is considered good practice. As per the general guidelines, ladder jack scaffolding must be inspected for damage before use. An inspector should ensure that all parts of the scaffolding are working in optimum condition. He must ensure that every screw and nut is secured. The damage to the scaffolding must be addressed immediately.
If a two—or three-rung bracket ladder jack is being used, the inspector must ensure that the rectangular brackets are fitted securely to the ladder rungs. It is better to use it on stable ground to avoid accidents. In addition, Ladder jack scaffolding should only be used by two workers at a time, with fewer tools, as it can support limited weight.
Adequate measures should be taken to protect the workers from harm. As the ladder jack is open from all sides and has a narrow platform, workers should be given personal protection gear, such as helmets, etc. They should also be supported through harnesses if needed. Contractors and management of the construction site can face legal trouble if workers are injured due to their negligence.
What are the OSHA guidelines for Ladder jack scaffold?
The Occupational Safety and Health Administration (OSHA) has outlined specific guidelines for ladder jack scaffolding to protect workers and the general public from injuries and fatalities.
As per OSHA regulations, ladder jack scaffolding must meet the specified design measurements. To reduce the risk of fall injuries, the maximum platform length is 20 feet (6.1 meters). The platforms become unstable above 20 feet, so invest in some other scaffolding if your project requires your worker to work above 20 feet above the ground.
Plus, the platform must be at least 12 inches (30 cm) wide and capable of supporting. 25 pounds per square foot. These platforms can support up to two workers. The distance between ladder supports should not exceed 8 feet. Lastly, bridging platforms together is prohibited by OSHA as it can lead to overloading of the scaffolding.
Much of OSHA’s guidelines revolve around ladders and jacks, which are the essential building blocks of ladder jack scaffolding. The ladders and jacks used in scaffolding must meet OSHA’s Subpart X standards. Job-made ladders are prohibited as they lack structural integrity.
Moreover, the ladder jack must have a minimum of 10 inches of contact with the side rail and rungs or the rungs alone to ensure stability. All ladders must also be securely supported to prevent any slipping or shifting incidents. Compliance with these guidelines improves the structural stability and balance of the ladder jack scaffolding.
OSHA requires contractors to provide fall protection for ladder jack scaffolding operating at heights greater than 10 feet (3.1 meters). They must employ the Personal Fall Arrest System (PFAS) in accordance with OSHA standard 1926.502(d). This system includes a full-body harness, a stable anchor point, and a lifeline that would arrest the fall before the worker can hit the ground.
Utilizing PFAS is necessary because ladder jack scaffolding lacks guardrails and is open from all sides, which puts workers at greater risk for fall-related injuries. Contractors can also provide workers with helmets and sturdy vests for another layer of protection.
The working platforms must be placed at a maximum distance of 24 inches (36 cm) from the vertical surface of work to reduce the risk of overreaching and loss of balance. However, in the case of plastering and lathing tasks, the distance can be extended up to 18 inches (46 cm) to account for tools and material applications.
Maintaining a suitable distance between the workers and the work area ensures ergonomic efficiency and prevents falls that can result from overextension. Contractors must follow these standards set by OSHA to ensure their project continues without accidents and is completed on time.
How much is the rental of Ladder Jack Scaffolding in the UAE?
The average rental price of Ladder Jack scaffolding is around 150-200 AED ($40-$68), depending on the type of ladder jack scaffolding, the material used, and the requirements of the construction site. Due to the demand for scaffolding, many licensed scaffolding companies operate in the UAE and provide suppliers with scaffolding for rent along with quick installation/dismantling services.
What is the Maximum Height for a Ladder Jack Scaffold?
The maximum height for a ladder jack scaffold is 20 feet (6.1 m) from the ground. Exceeding this height is not recommended because it can lead to instability and imbalance, which can be dangerous for the workers. The Occupational Safety and Health Administration (OSHA) has also set 20 feet as the maximum height for ladder jack scaffolding. If you require your workers to work higher than 20 feet, we suggest you invest in other complex scaffolding.
Conclusion
Ladder jack scaffolding is the simplest form of scaffolding, which is made of a ladder, rungs, and platforms. It is perfect for light-duty work due to its portability, flexibility, and cost-effectiveness. Ladder jack scaffolding is used for painting tasks, maintenance, decoration, repairs, and camera installations, among many other tasks. It also takes up limited storage space and can reach narrow places where other heavy scaffolding cannot.
However, it can only support a limited amount of weight and go up 20 feet (6.1 meters) from the ground. There are no guardrails that pose a significant fall-related injury risk. Furthermore, the narrow platforms can only support one worker with minimal equipment. Despite all this, ladder jacks are widely used in construction projects all over the world.
Requirements for Scaffolding are stringent in the UAE, and compliance with them is necessary. OSHA has set standards and policies regarding the design of ladder jack scaffolding, including its height, platform width, and jack placements. As per the policies, contractors are also compelled to use a Personal Fall Arrest System (PFAS) to protect the workers. Overall, Ladder Jack scaffolding is a simple yet effective scaffold that is utilized to efficiently complete a plethora of tasks at a construction site.
